Military · Extension Kit · Pairs with 100K
C-130
C-130 Extension Kit
Extension kit that pairs with the PlaneSkate 100K to recover the C-130J at gross weight. Combined capacity: 187,500 lb with a 20% safety margin. Single-gear max 35,000 lb.
Combined GW187,500 lb
AircraftC-130J
Single-gear max35,000 lb
Total weight1,150 lb
Full Specifications
Built for the Hercules.

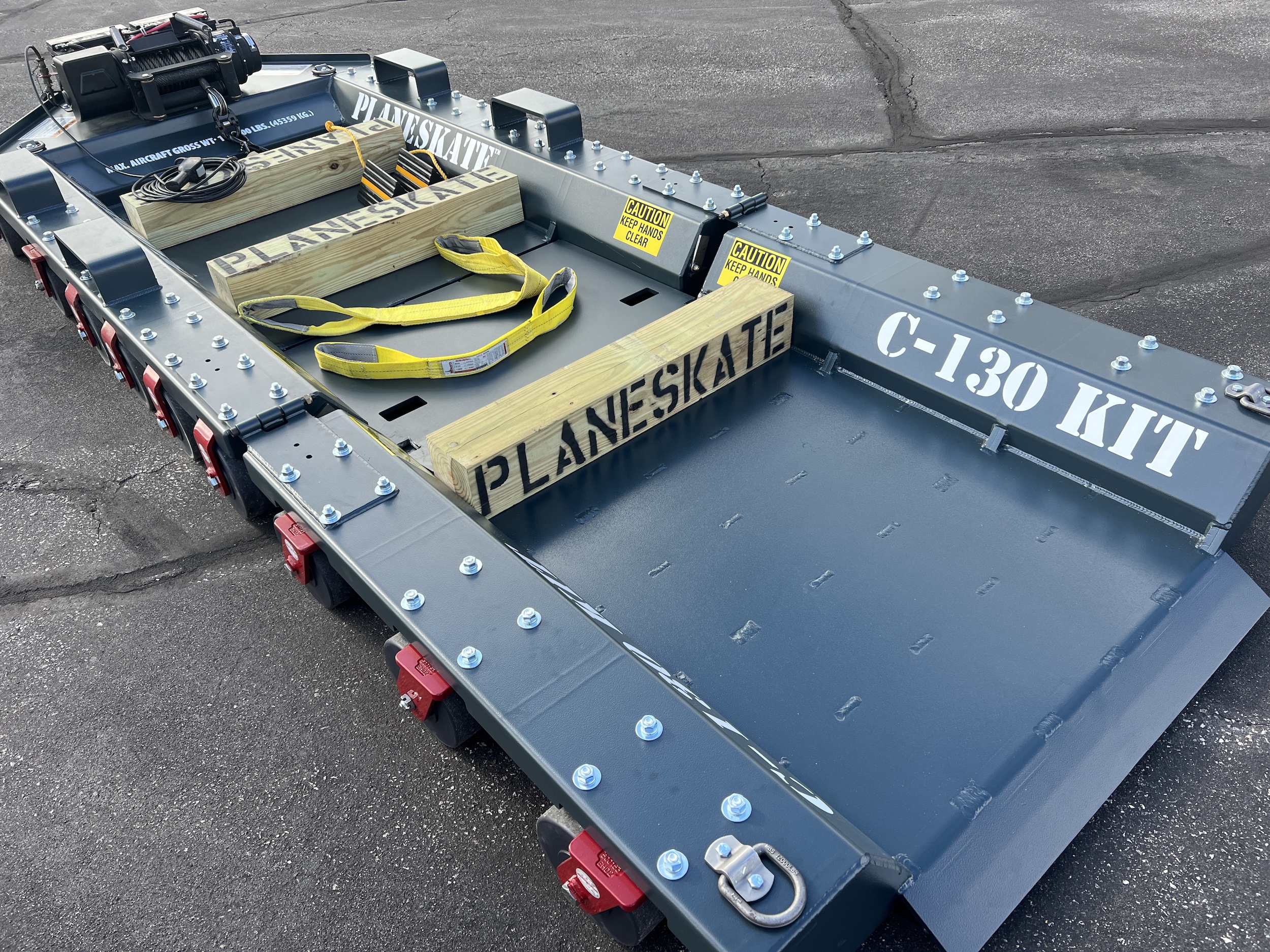

Sled-bottom construction with six Hamilton Nylast dual-wheel casters. Pairs directly with the 100K — supports the C-130J at gross weight.
Download Spec Sheet →Combined gross weight187,500 lb
Safety margin20%
ConstructionSled-bottom 1/2" steel
Casters6 × Hamilton dual-wheel
Single-caster capacity7,000 lb
Dimensions5' × 10' × 11.5"
Total weight1,150 lb (521.6 kg)
Tray36" × 52"
Max single-gear weight35,000 lb
AircraftC-130J at gross weight
Pairs withPlaneSkate 100K
Tow speed (max)10 mph
ProcurementMilitary / Sole source
Made inBuffalo, MN
Built for
The Hercules family.
- Lockheed C-130J Super Hercules
- C-130H (with paired 100K)
- Heavy military airlift
- Air Mobility Command
- Coalition C-130 operators
Procurement
Sole-source ready.
- Military procurement surface only
- Sole-source provider letter available
- SAM.gov registered (with 100K)
- CAGE 9Y2A2 · UEI GVP2MTE8LZ93
- Made in Buffalo, MN (USA)

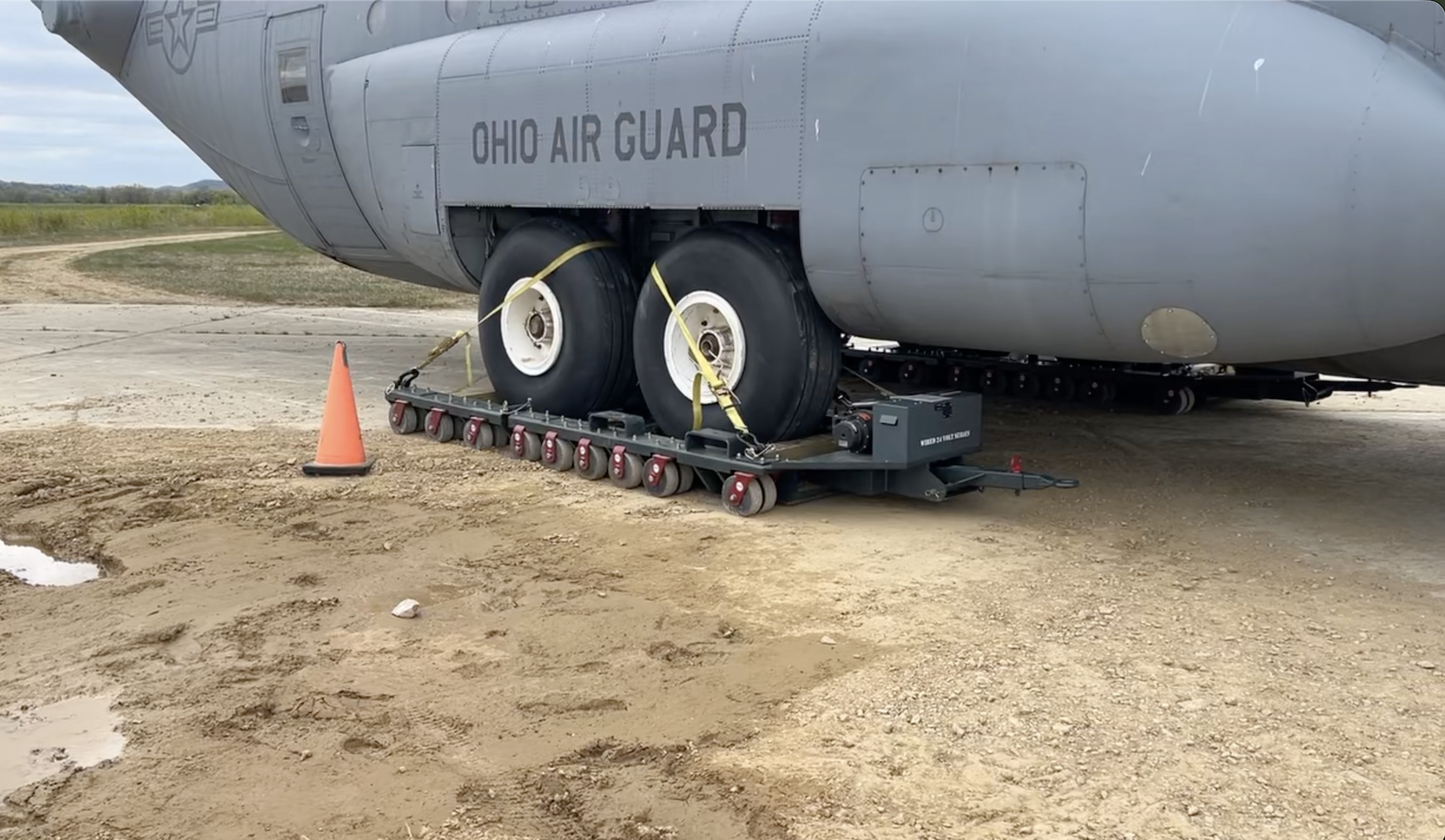

A Hercules at gross weight. Moved.
See the 100K + C-130 Kit recover a disabled C-130J on the runway.
Request a Runway Demo →
