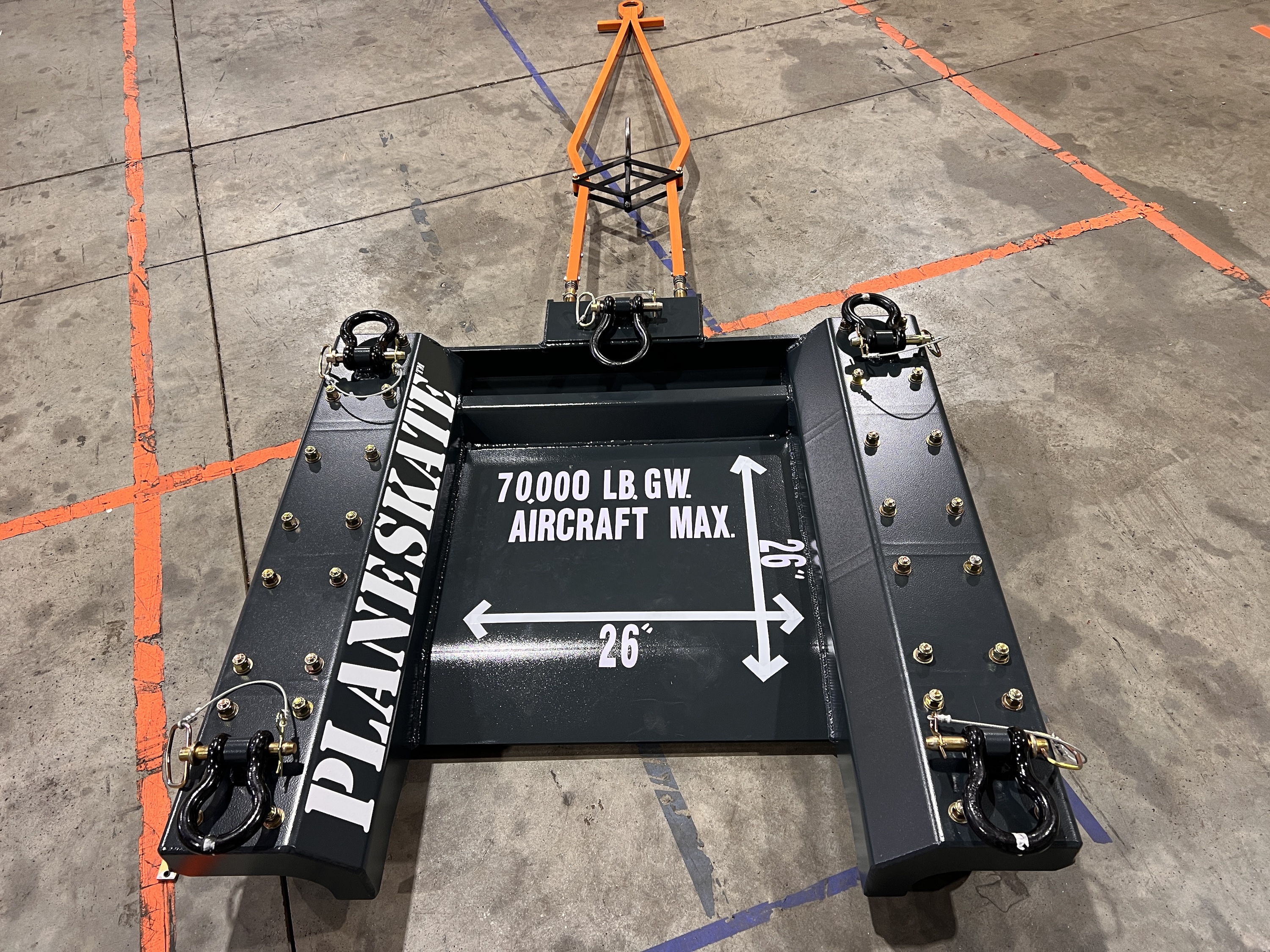

Planeskate model 70K

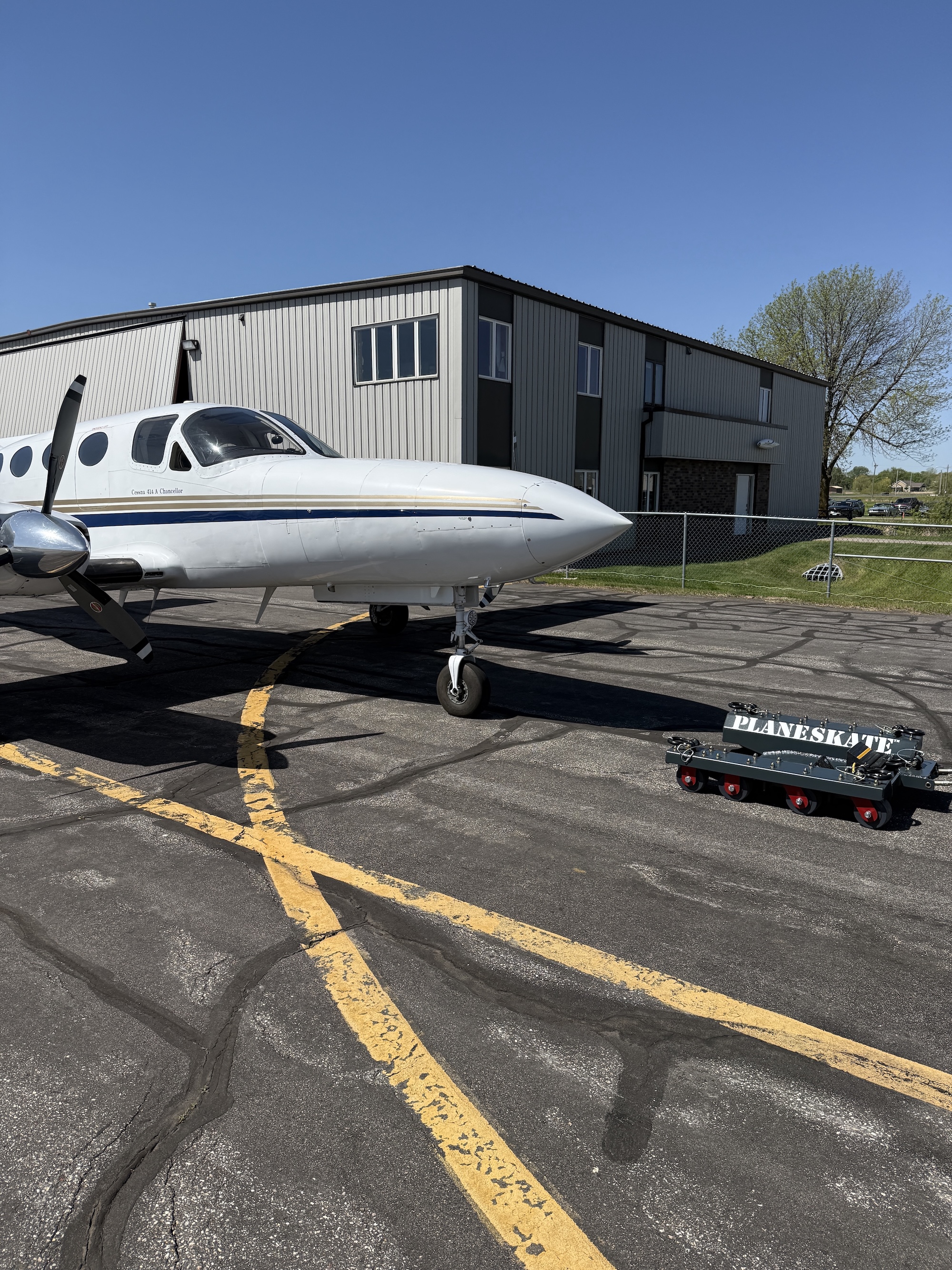

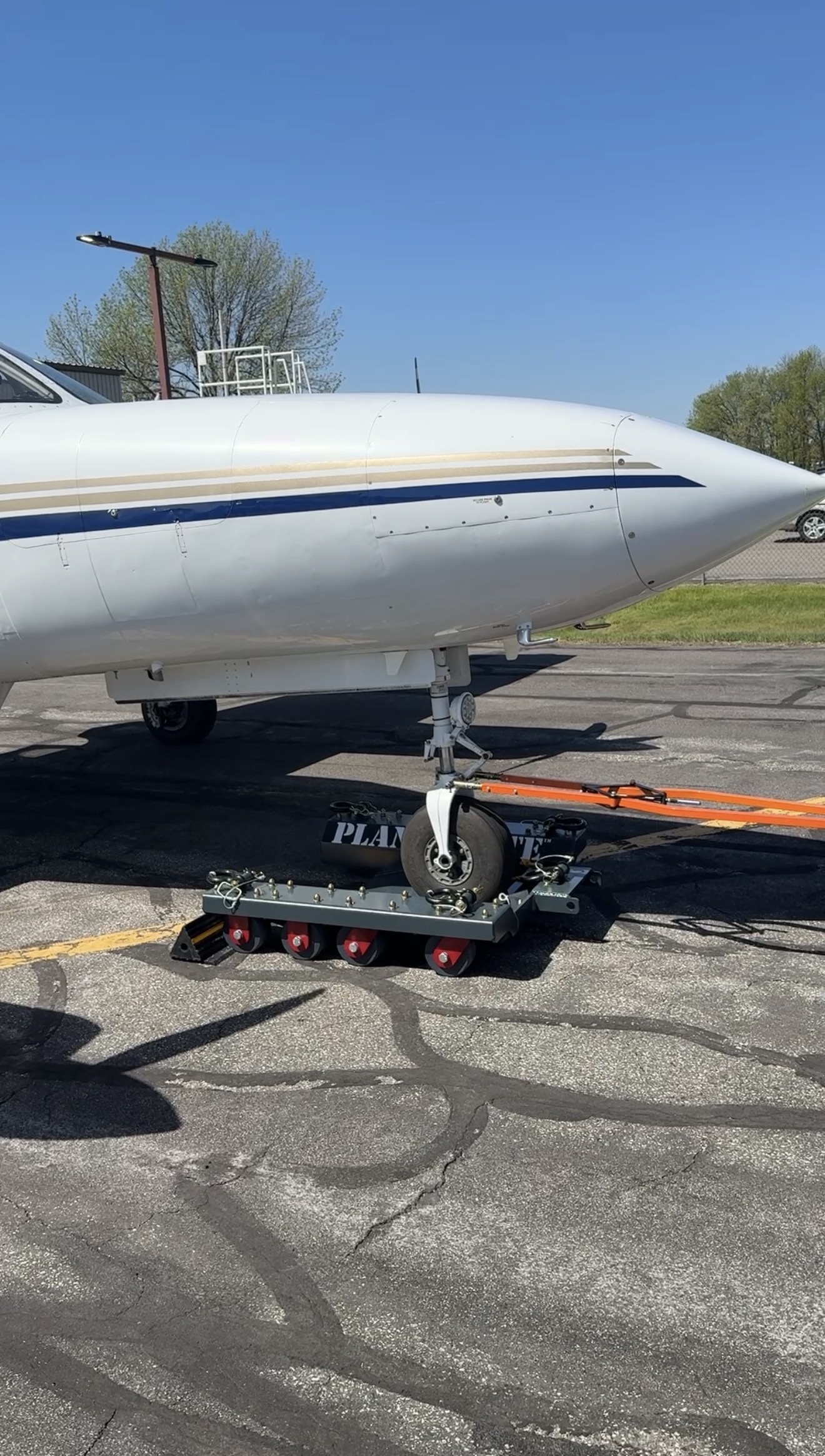

Civilian aircraft recovery for the largest piston twins, turboprops, and medium corporate jets — up to 70,000 lb gross weight. Designed for dual main gear and low-hanging landing-gear doors.
Full Specifications
Mid-tier muscle.
Engineered for County, Regional, and Major airports servicing turboprops and medium jets. Hamilton Nylast casters with a 25% caster safety margin.
Download Spec Sheet →Max gross weight70,000 lb
Safety margin20%
Construction1/2" + 1/4" welded steel

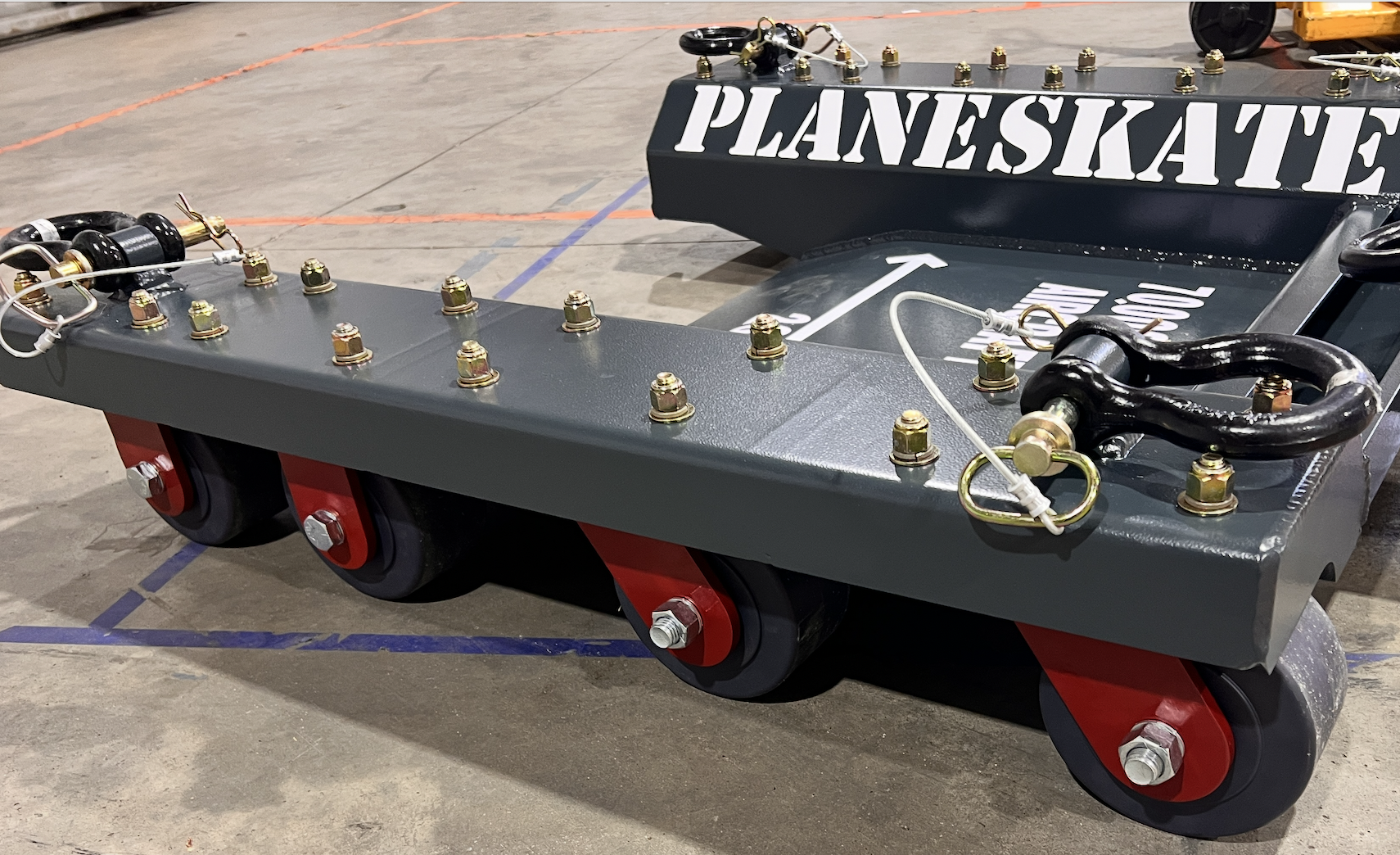

Casters8 × Hamilton Nylast
Single-caster capacity5,000 lb
Caster config4 swivel + 4 rigid
Dimensions48" × 45.5" × 11"
Total weight375 lb
Deck height3"
Ramp angle10°
Max single-gear weight40,000 lb
Tow speed (max)10 mph
Tow barUniversal + Military
List price$25,995
